KT15-HP

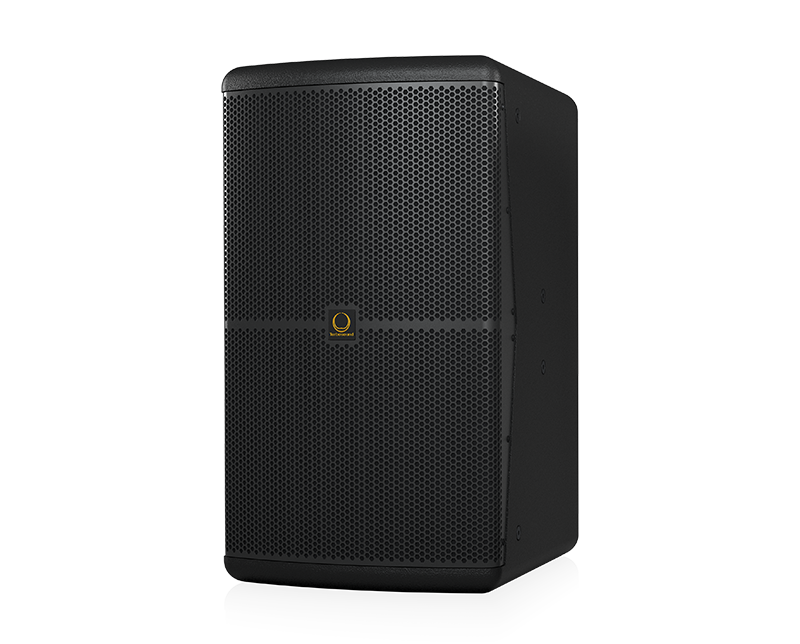

The 2-way 15” full range KT15-HP is a 2,600-Watt peak loudspeaker system designed specifically for KTV applications. Multiple M10 rigging points and a 35 mm pole mount provide versatility for installation.

Precision and Detailed Clarity

The KT15-HP loudspeaker features a 15" low frequency driver with a low mass 4” voice coil for improved transient response, demodulation rings for maximum clarity at high spl, and a polyimide 1.75” diaphragm 1" exit ferrite motor compression driver mounted on a 80° horizontal by 60° vertical low distortion waveguide. All drivers are matched with a precision engineered passive crossover network that provides maximum performance in the midrange vocal region and high gain before feedback.

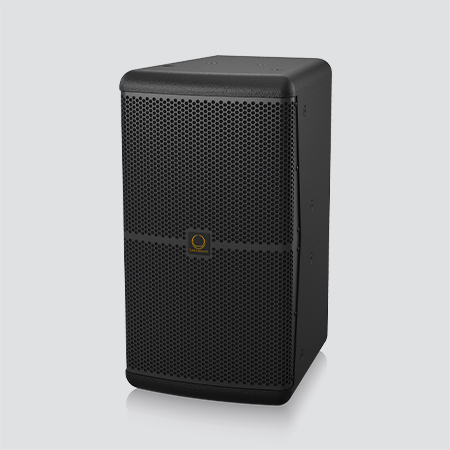

Construction and Connectivity

Finished in a highly durable semi matt black paint, the cabinet is constructed from 12mm (½") & 15 mm (⅝") plywood – and includes an architecturally styled powder coated perforated steel mesh grille backed with reticulated foam. Rotatable badge for vertical or horizontal deployment. Multiple internal M10 rigging points are provided for suspension in any orientation or mounting with an additional 35mm pole mount for stand mount options. The rear panel connector plate carries industry-standard twist-locking speaker input and link quick and convenient wiring.

Custom-Engineered Drivers

Turbosound is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed by ourselves or to our exacting standards. Our KT series transducers have been carefully designed and tested for the exacting requirements of the KTV market.

Enclosure Design

The KT series employees a low distortion rear ported design favoured for KTV applications for maximum bass impact, taking advantage of low frequency boundary effect loading.

Architecture and Engineering Specifications

The speaker shall be of the full range, two-way passive type consisting of one 15" (380 mm) LF ferrite driver and one 1" (25 mm) HF ferrite compression driver with 1.75” voice coil. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 70 Hz to 20 kHz and within -10 dB from 43 Hz to 20 kHz. Nominal dispersion, at -6 dB points, shall average 80° H x 60° V, rotatable. Nominal impedance shall be passive: 8 Ohms.    Power handling shall be passive: 650 Watts continuous, 2,600 Watts peak. Sensitivity, measured on axis, mean averaged over the stated bandwidth, shall be 99 dB, 1 Watt @ 1 metre.  Maximum SPL of 139 dB in passive mode (Average Peak level over overlap bandwidth. SPL level at 1 m under free field conditions, using pink noise with crest factor 4, with dedicated pre-set).   Dimensions: 700 mm high x 410 mm wide x 460 mm deep (27.56 x 16.14 x 18.11") Net weight: 31.5kg (69.4 lbs). The loudspeaker system shall be the Turbosound KT15-HP. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance / size specifications are equalled or exceeded.
