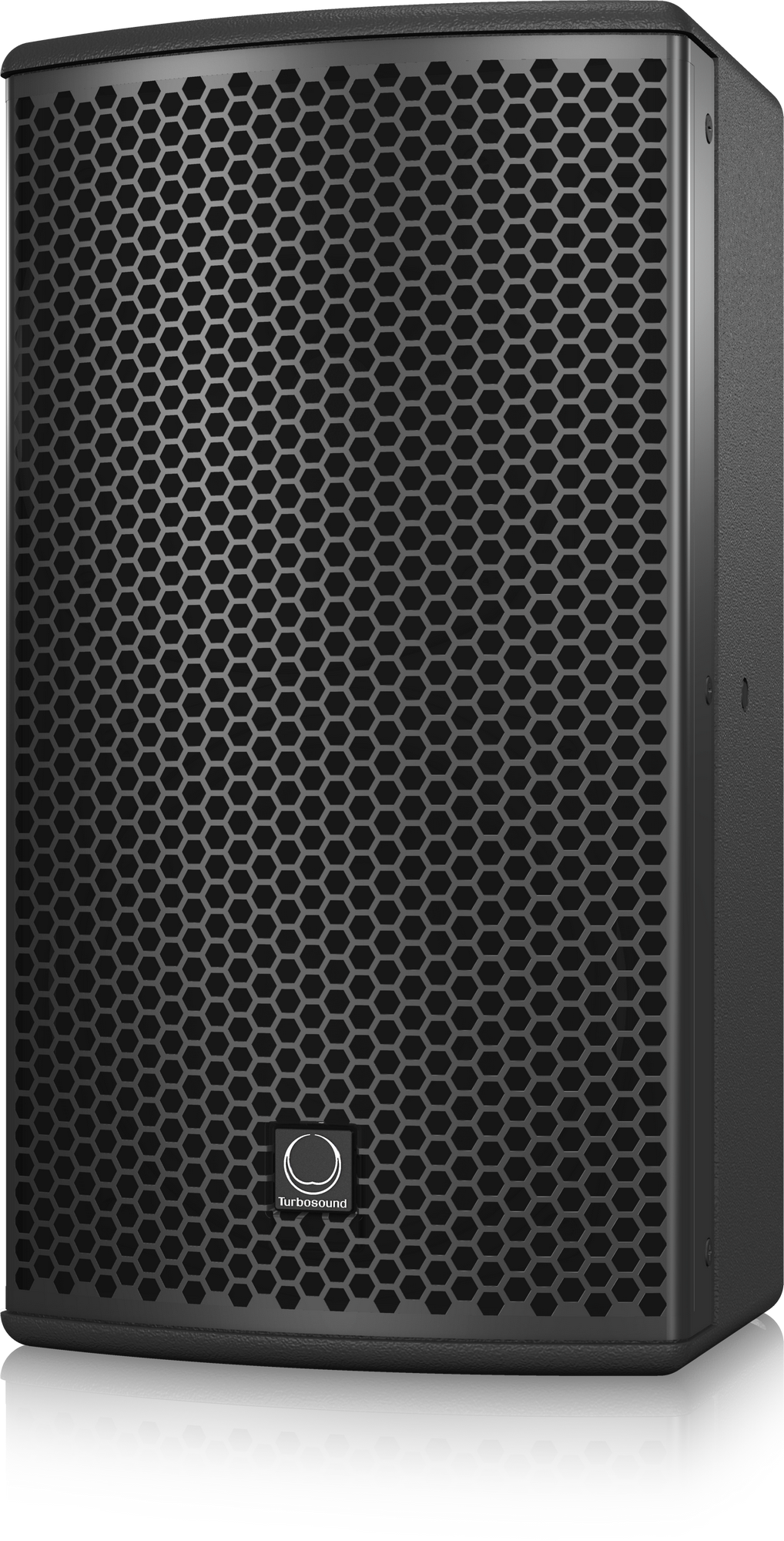

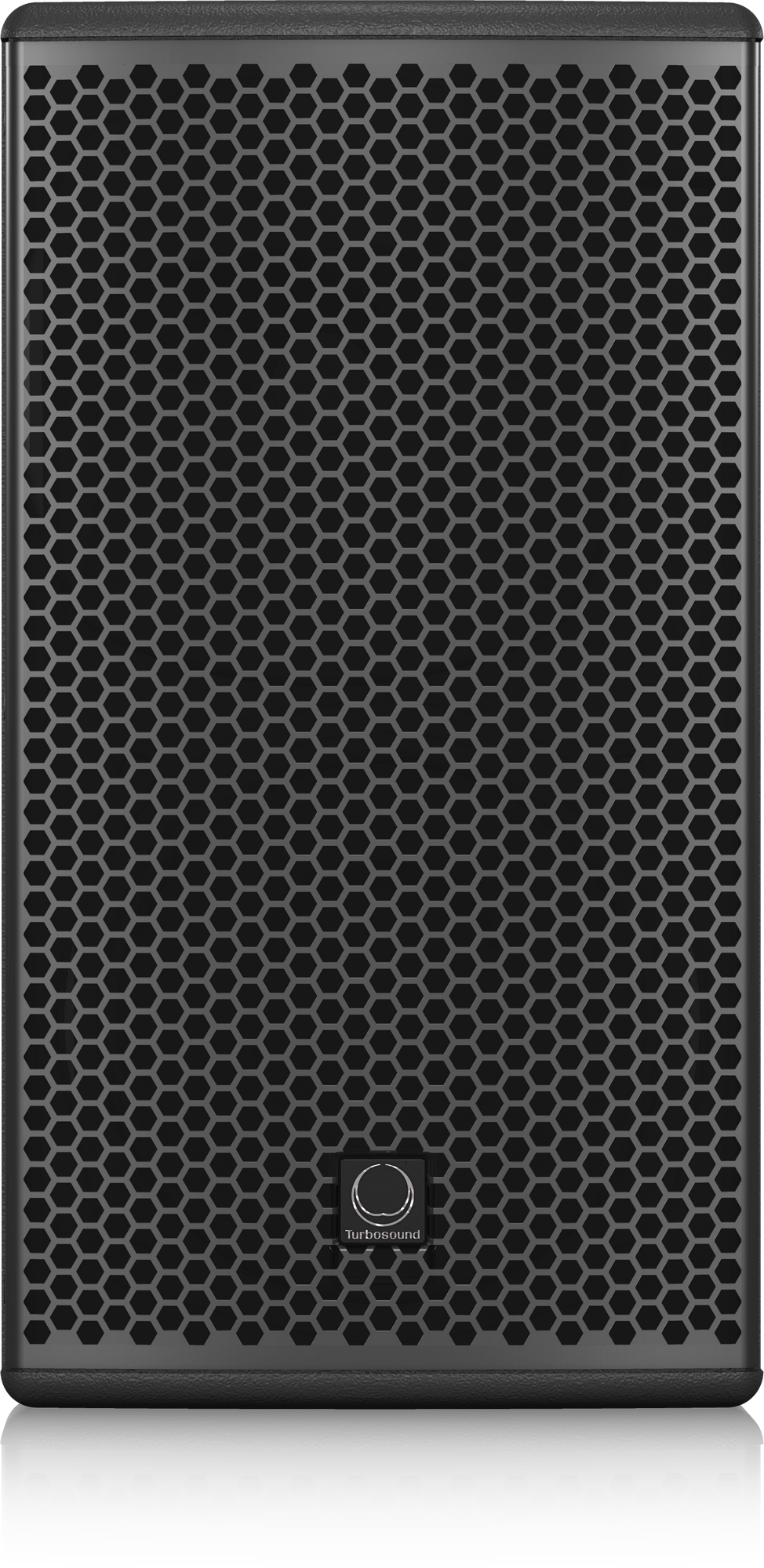

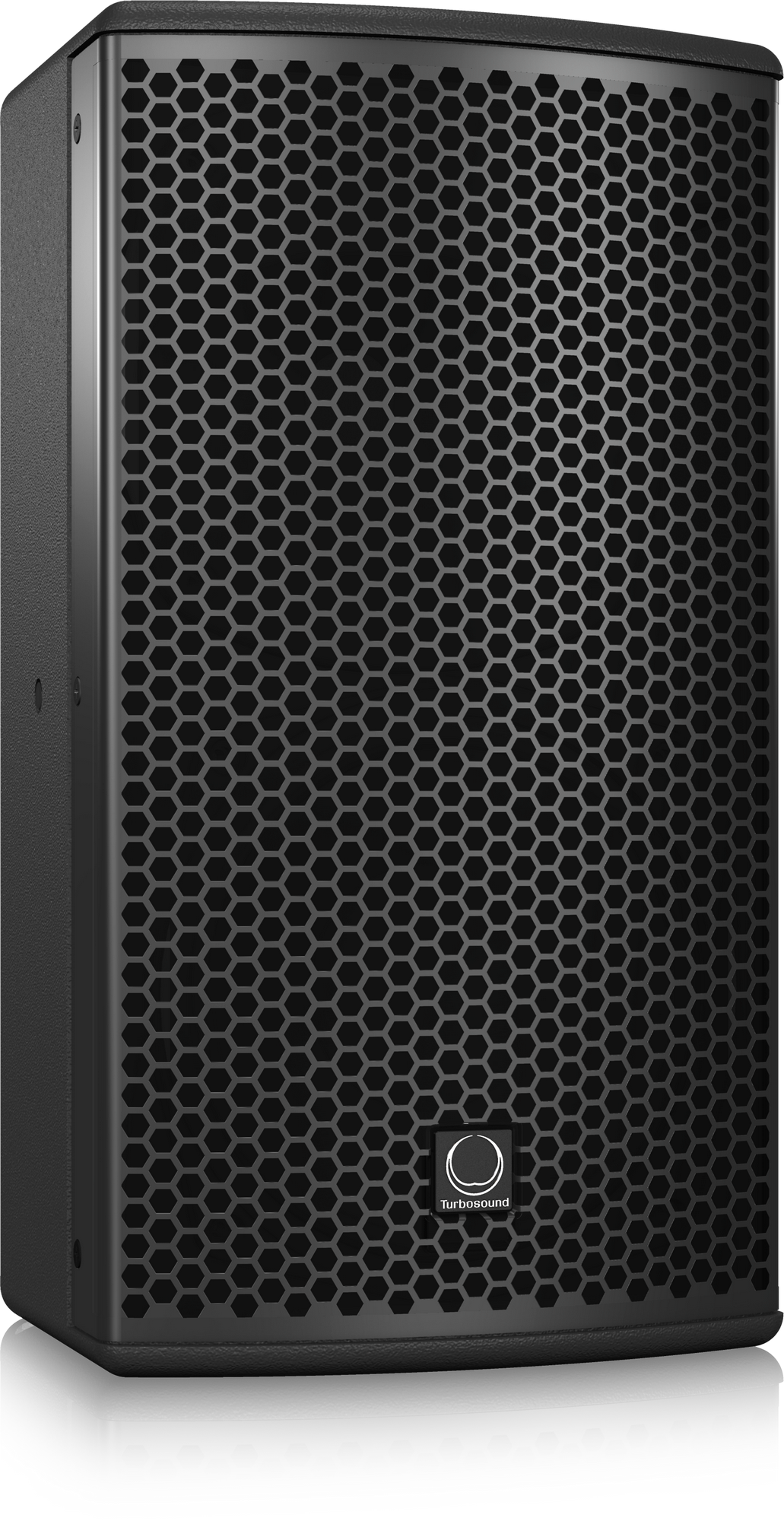

The TURBOSOUND NuQ-6 is an ultra-compact passive loudspeaker system consisting of a front-loaded 6.5" neodymium low frequency driver and a 1" neodymium high frequency compression driver on a rotatable 90°H x 60°V Converging Elliptical Waveguide matched with an internal passive crossover network.

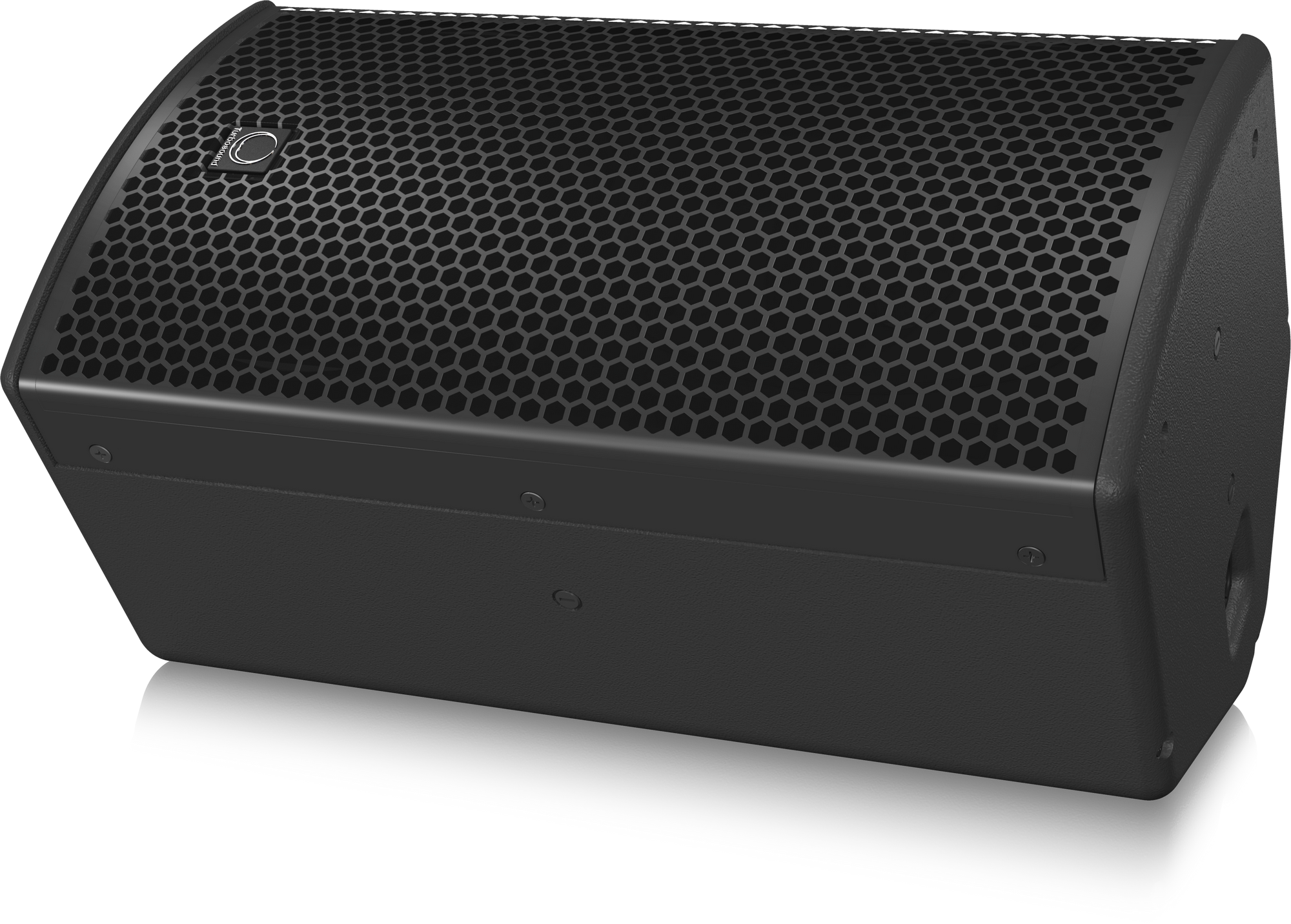

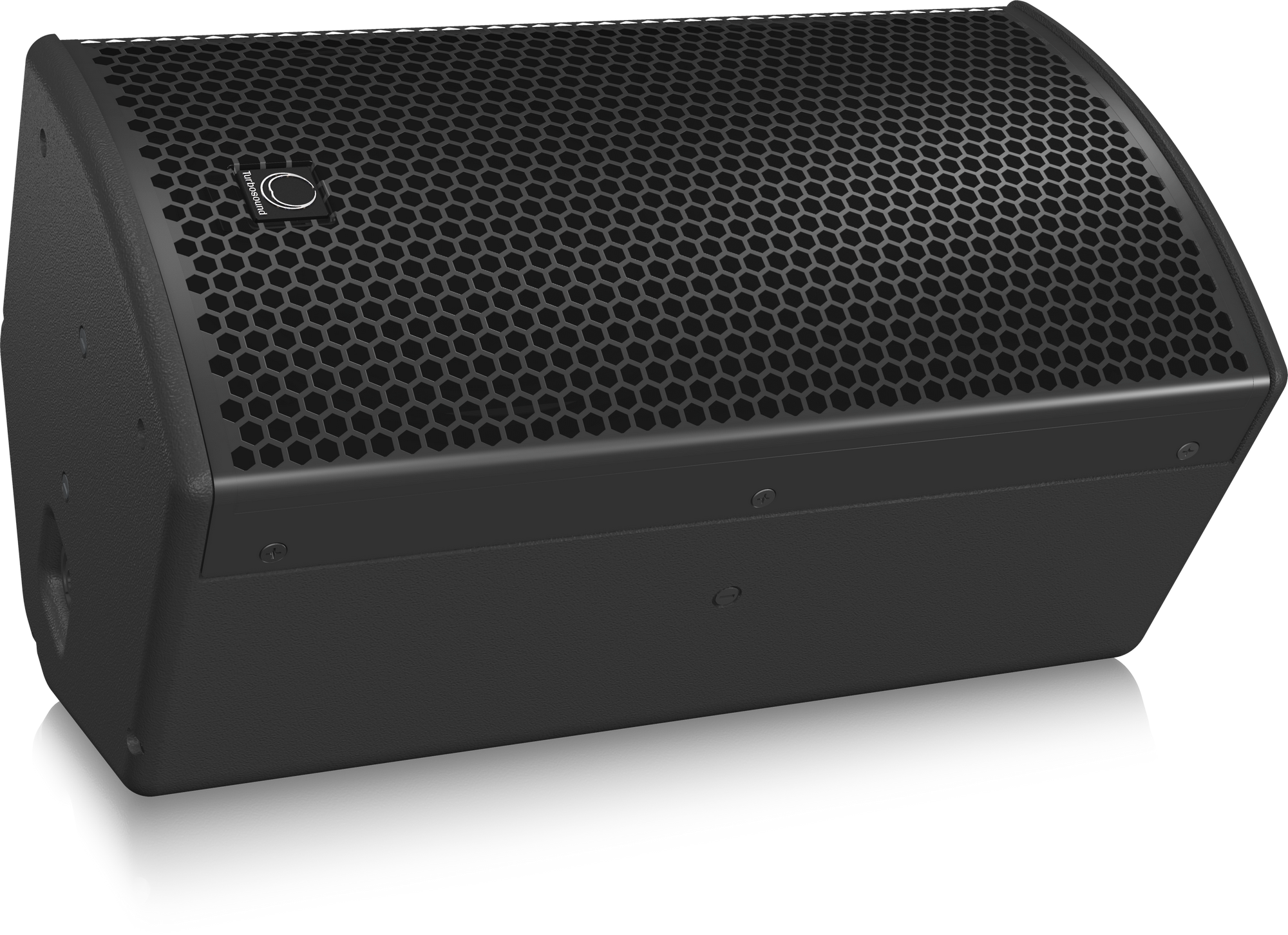

When used with Turbosound LMS Series controllers the NuQ-6 provides optimum performance for small applications with considerable flexibility to adapt to varying venue requirements, and is particularly effective as part of a high performance sound reinforcement package together with Turbosound subwoofer cabinets. In addition a high degree of system control can be achieved by integrating NuQ loudspeakers into a BVNet network using TurboDrive control software. The HF waveguide can be rotated through 90° within the enclosure, making it possible to swap the horizontal and vertical coverage patterns. The birch plywood cabinet is finished in black or optional white semi-matt textured paint, and includes a steel mesh grille backed with reticulated foam. Its asymmetrical shape, together with the rotatable HF horn pattern, creates an additional role for monitor wedge or lip-fill applications. The cabinet includes multiple rigging points for use with optional flying yokes and swivel brackets, and includes three industry-standard twist-lock speaker connectors.
