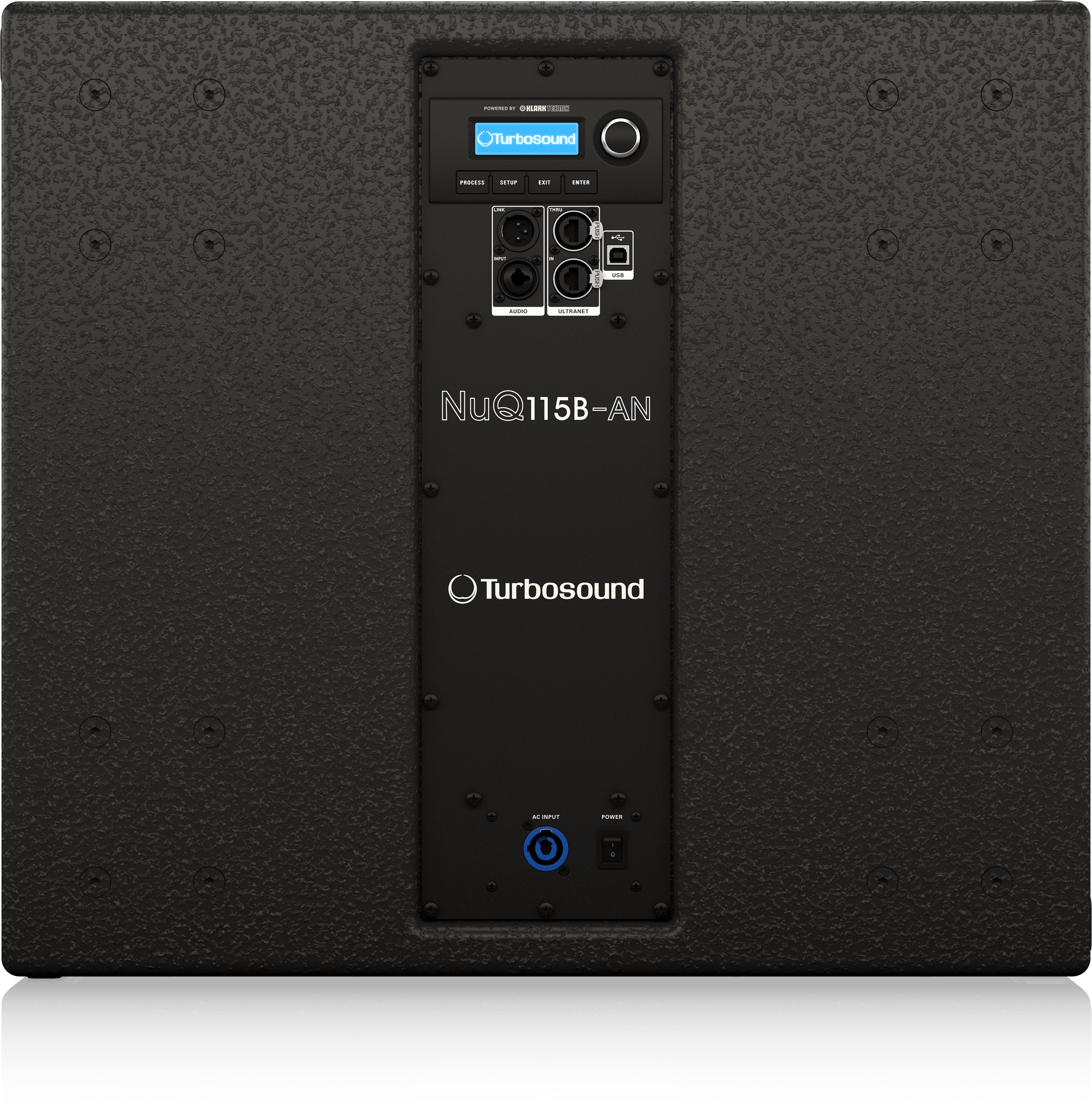

On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, crossover alignment and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active subwoofers, or for use with active full range satellite speakers. An onboard USB port provides access for remote control of the NuQ115B-AN via PC computer, as well as DSP firmware updates. ULTRANET connectivity is provided by two locking RJ45 connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation. Finished in a highly durable semi matt black paint, the cabinet is constructed from 18 mm (¾ ") birch plywood and includes – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam; multiple M10 threaded rigging points; a 35 mm pole socket for satellite speaker mounting; integrated carry handles for convenient transport – and high impact interlocking corners for ground stacking stability. Mains power input is provided via an industry-standard twist-locking power connector.
