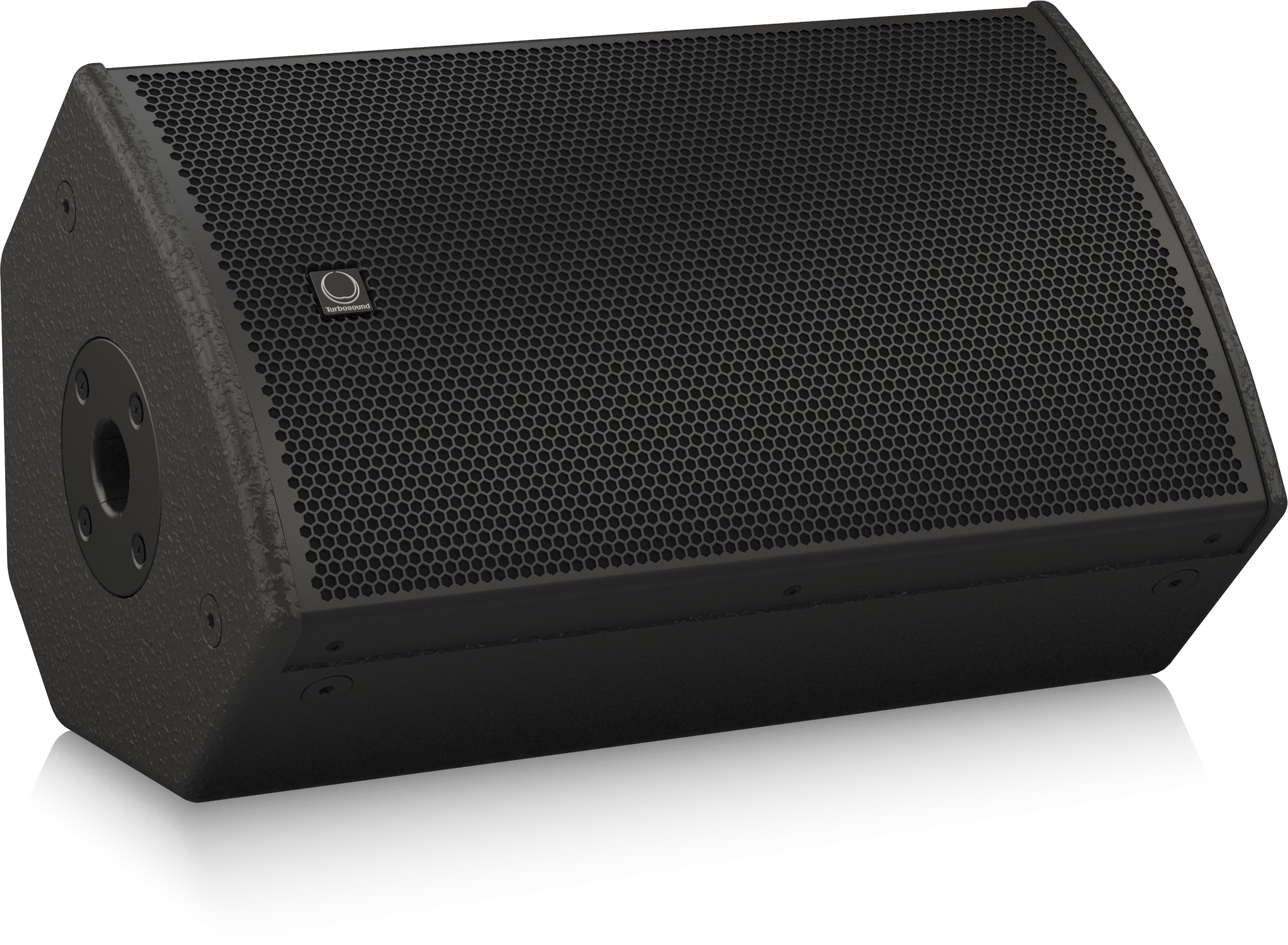

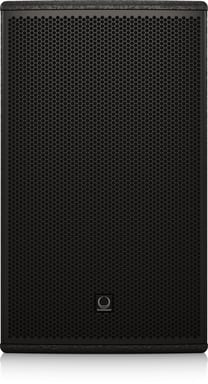

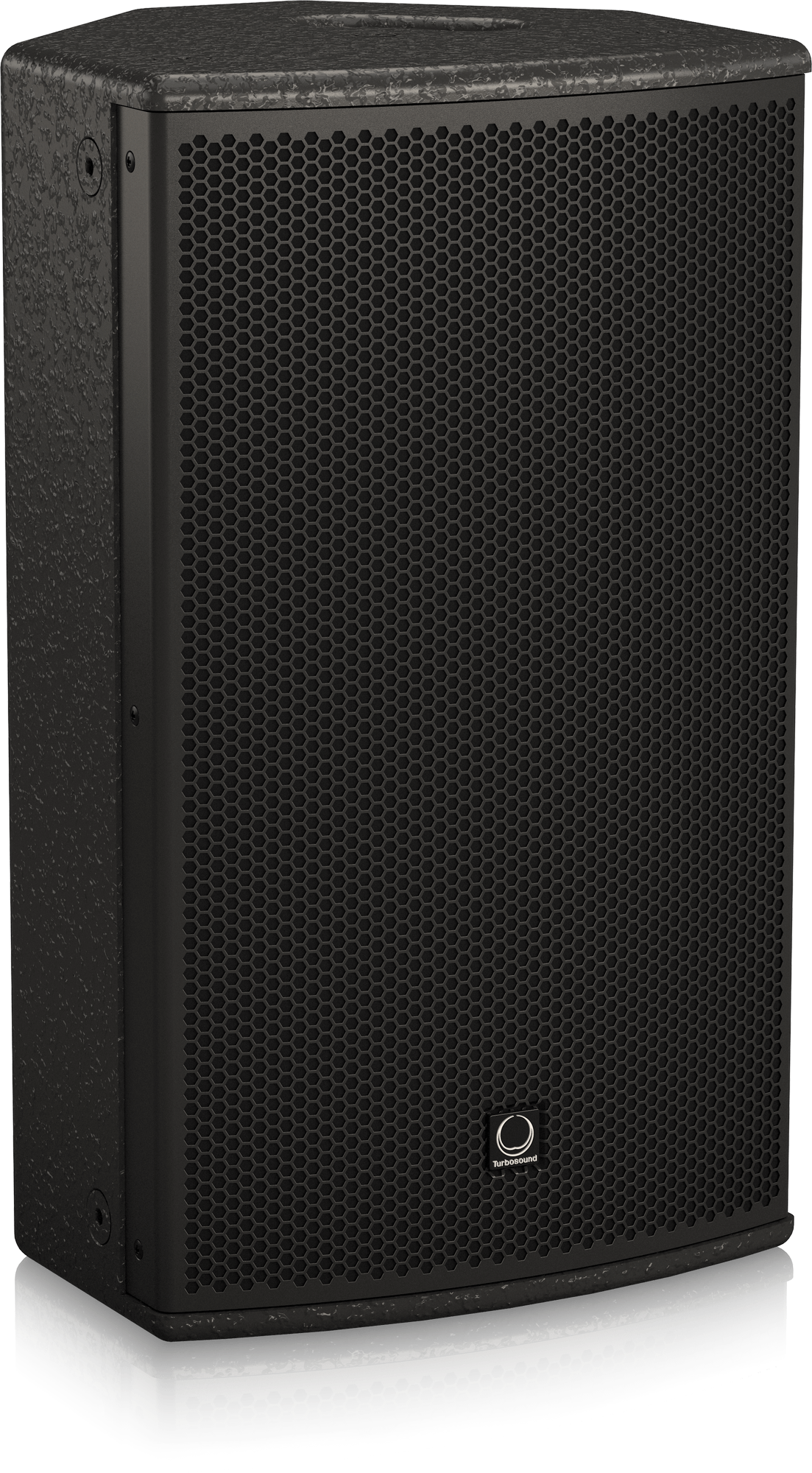

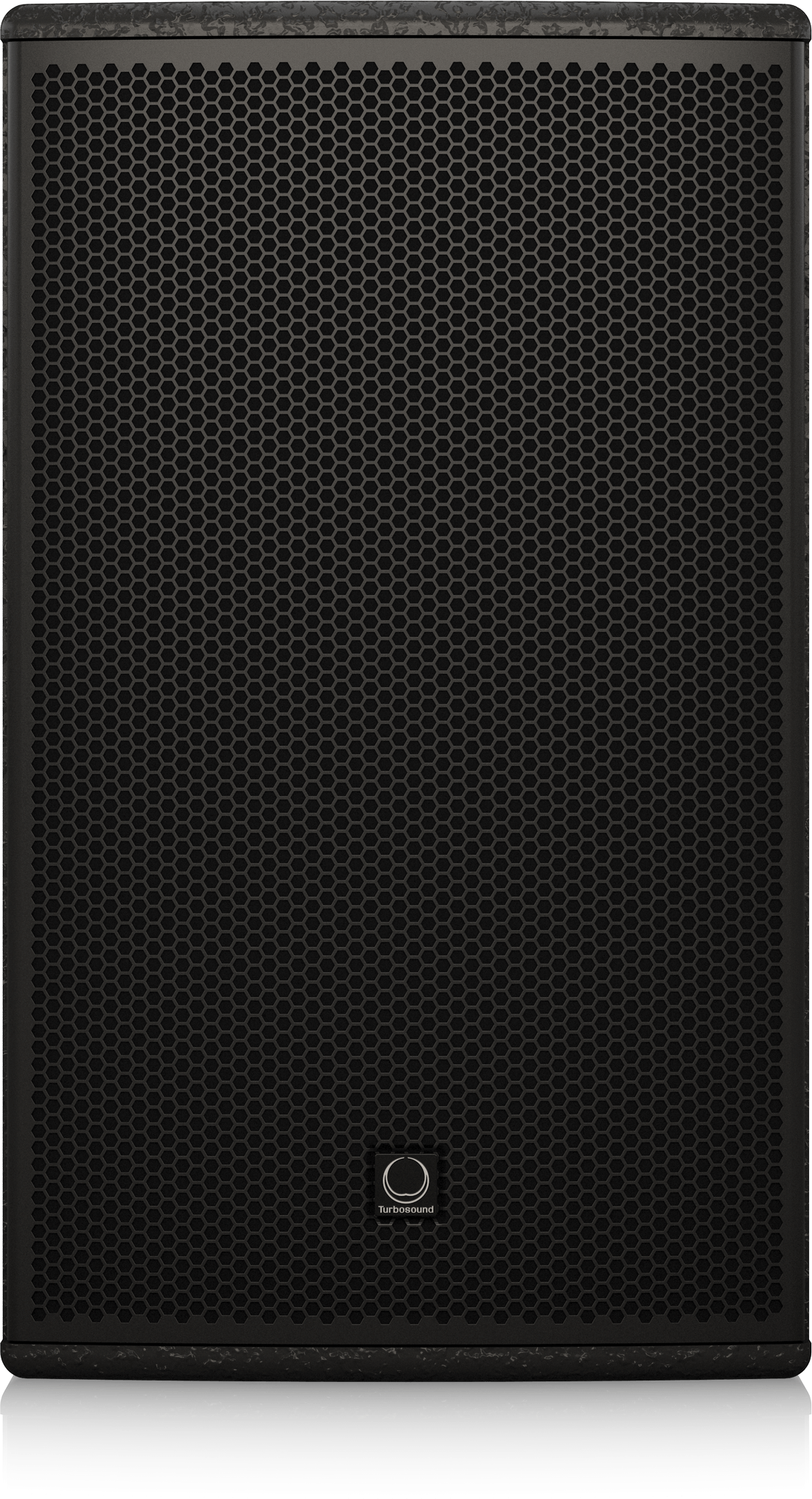

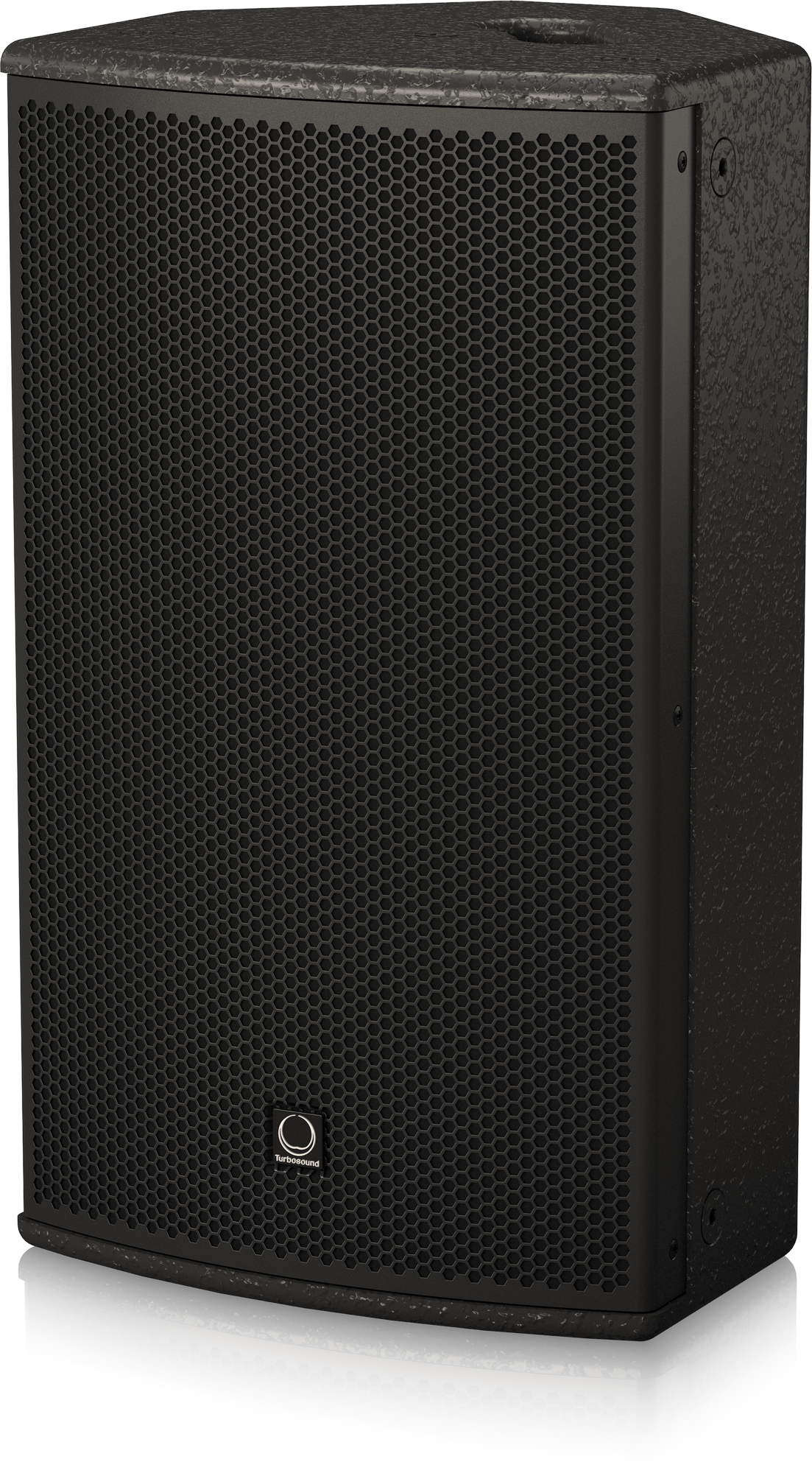

NuQ82-AN Networked Powered Loudspeaker

The Turbosound NuQ82-AN is a 600-Watt powered 8-inch two-way loudspeaker built for portable and fixed-install reinforcement where compact form factor and networked control matter equally. It pairs a KLARK TEKNIK Class-D amplifier with ULTRANET digital audio networking over a single Cat5 home run.

Drivers and Dispersion

An 8-inch low-frequency driver with a low-mass voice coil delivers improved transient response, paired with a 1-inch aluminium-dome neodymium HF compression driver mounted on a rotatable converging elliptical waveguide. The waveguide provides 100 degrees horizontal by 60 degrees vertical dispersion and can be rotated to suit horizontal or vertical cabinet orientation.

Specification Highlights

• Configuration: 2-way 8-inch powered loudspeaker
• Power: 600 W KLARK TEKNIK Class-D
• Drivers: 8-inch LF, 1-inch neodymium HF compression
• Coverage: 100 degrees H x 60 degrees V, rotatable waveguide

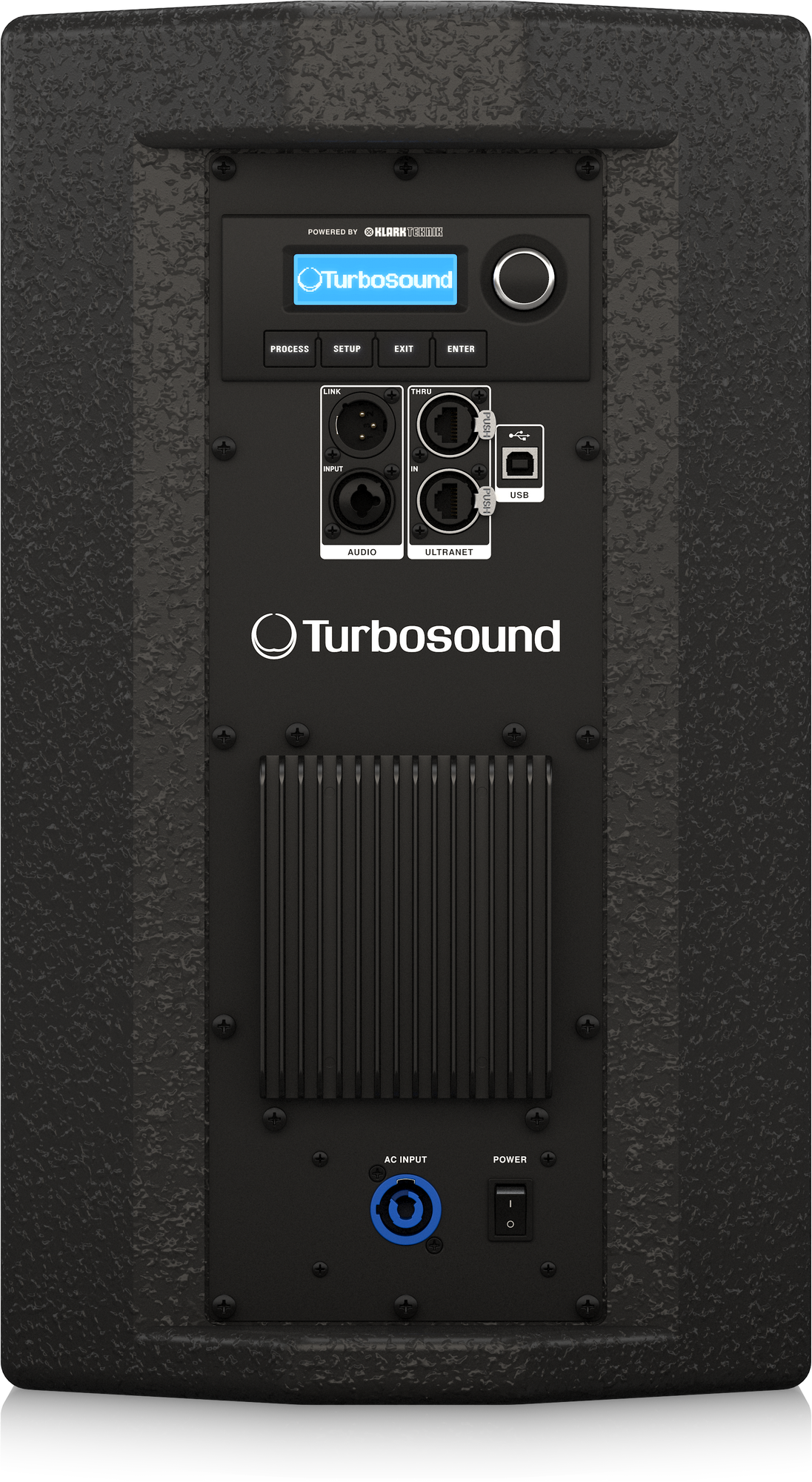

• ULTRANET via 2 x locking etherCON (16 channels, 24-bit)
• Balanced XLR in / XLR thru, USB for remote control

Designed For

Boardrooms, retail and hospitality spaces, smaller houses of worship, conference rooms, and distributed install systems where each zone is fed from a single networked cable run.
