MAN210-FG

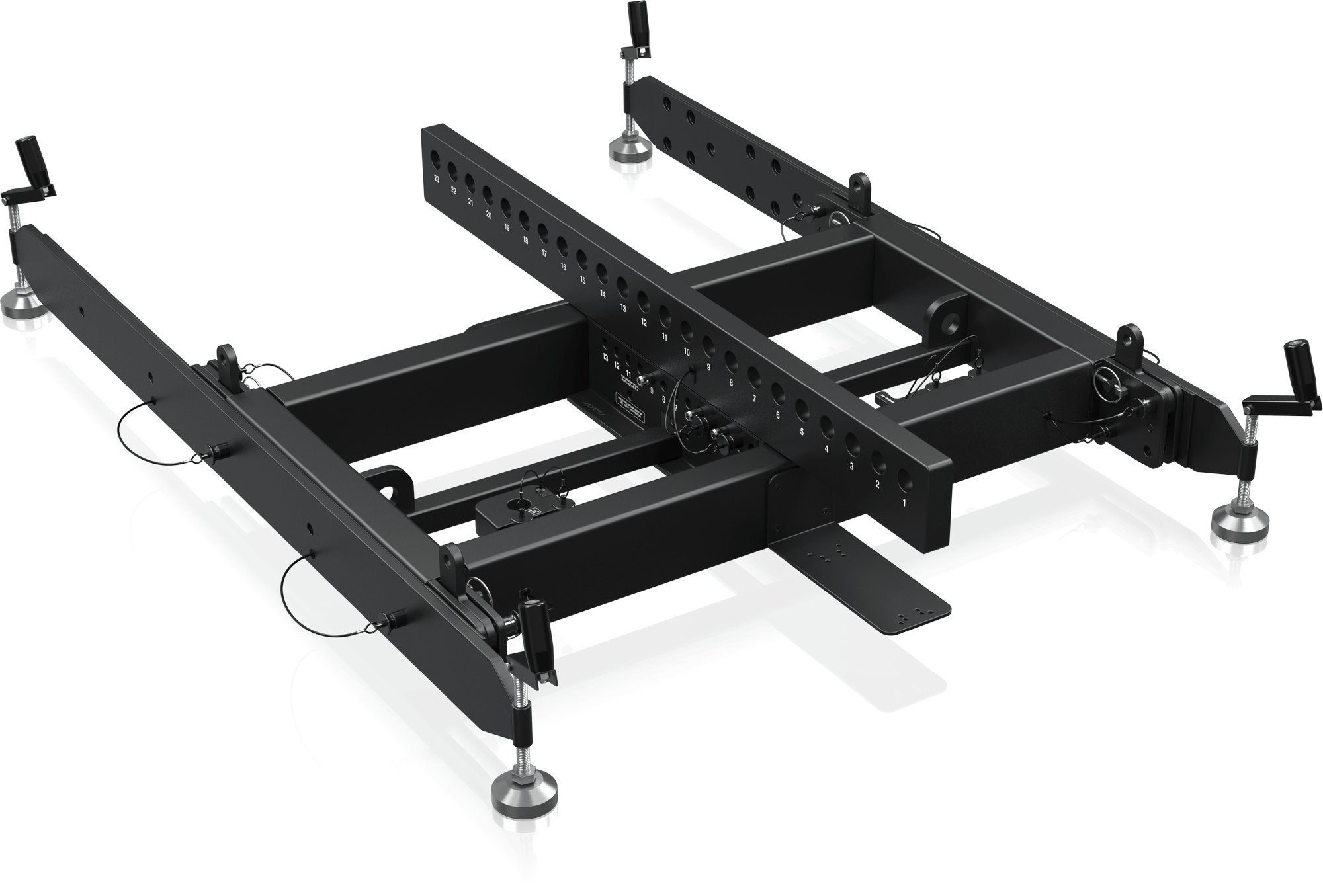

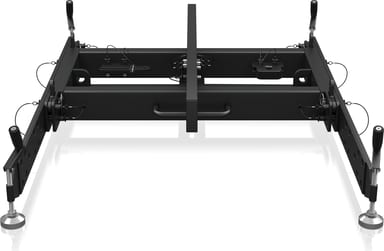

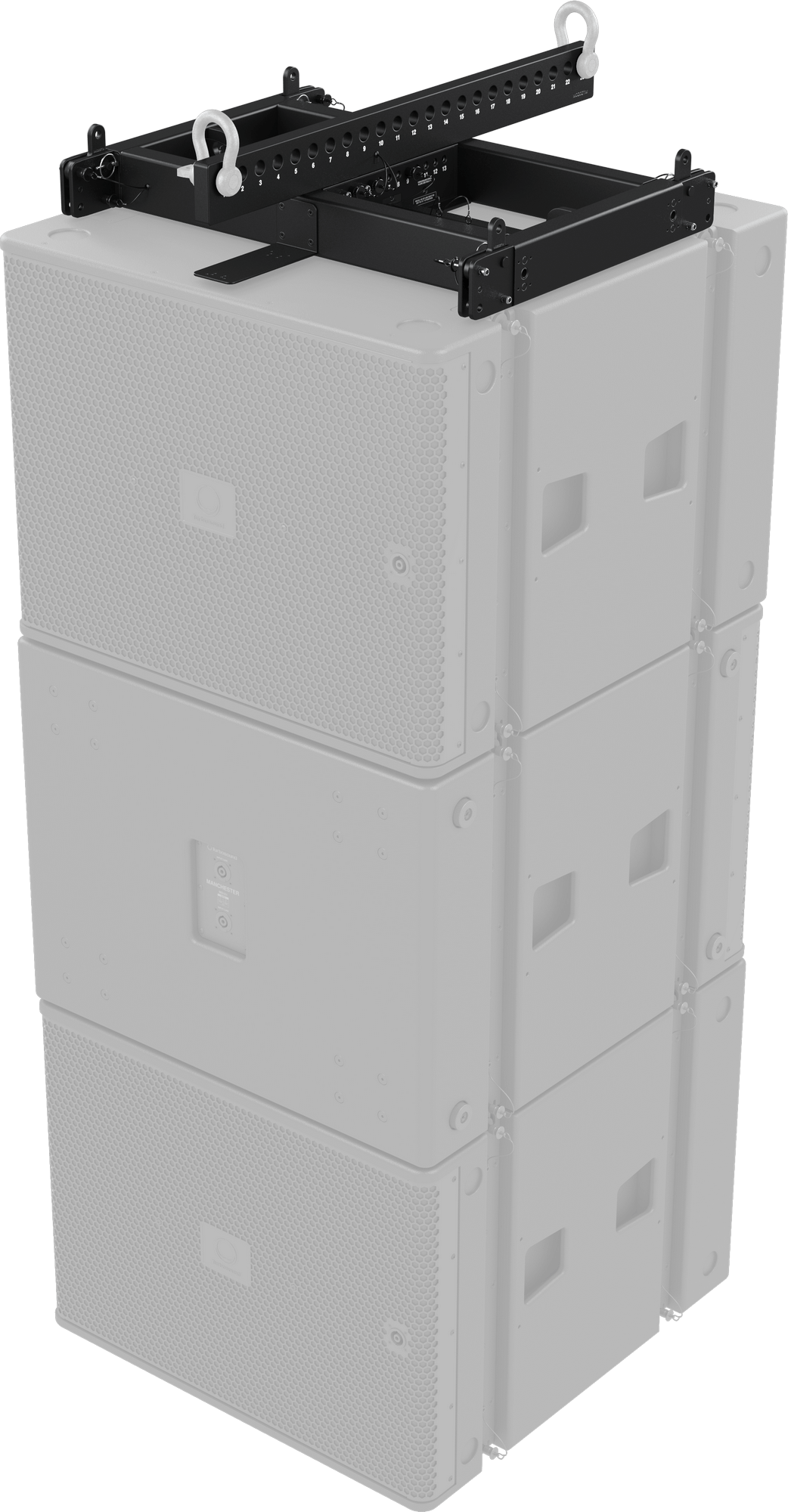

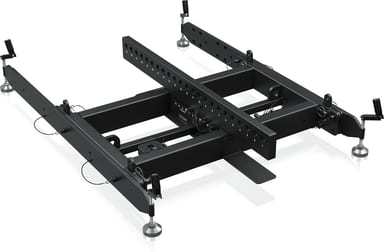

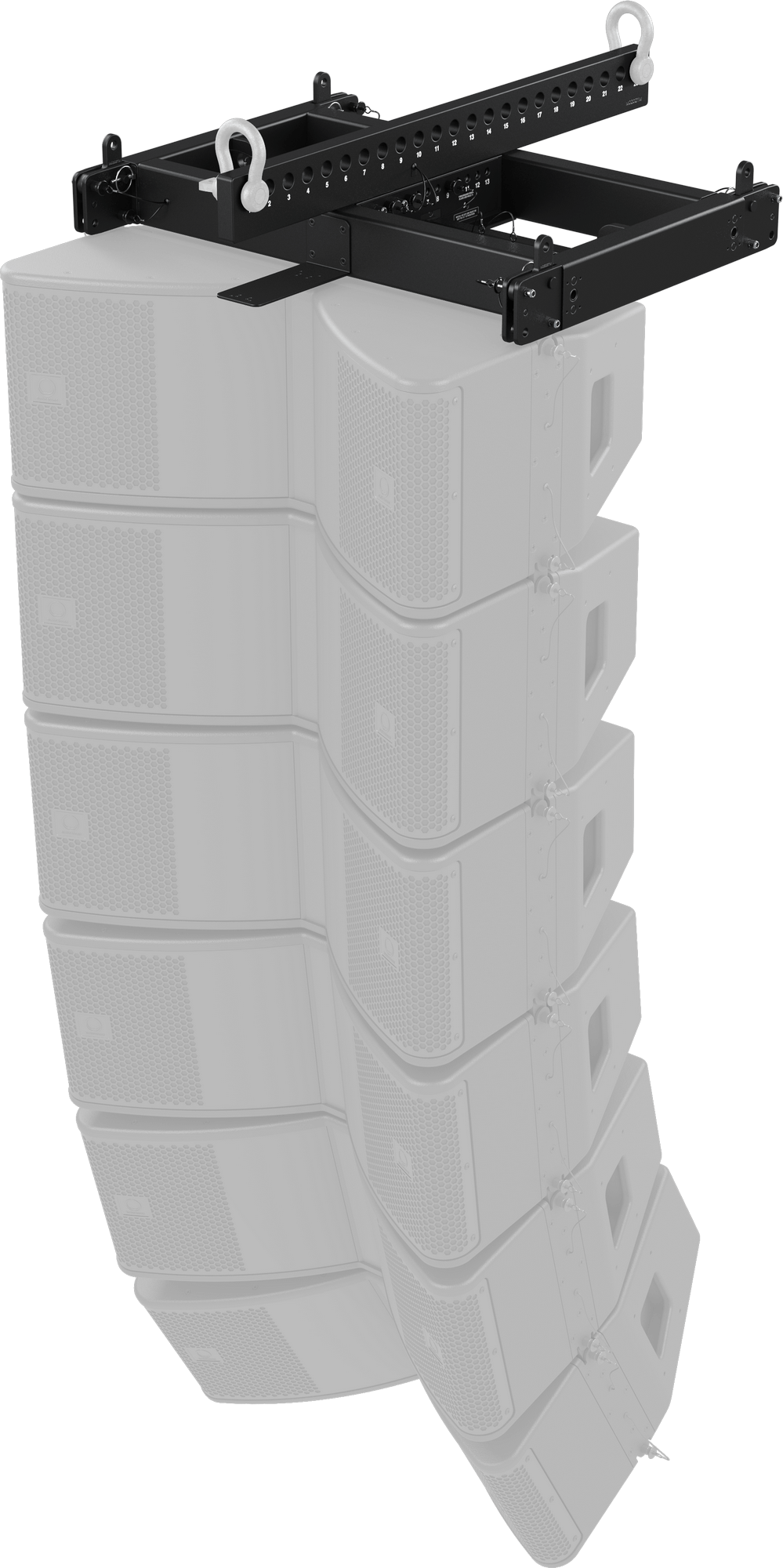

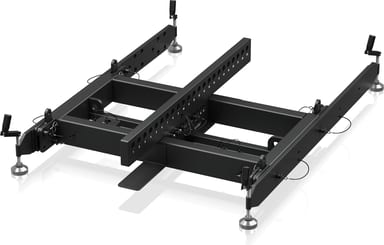

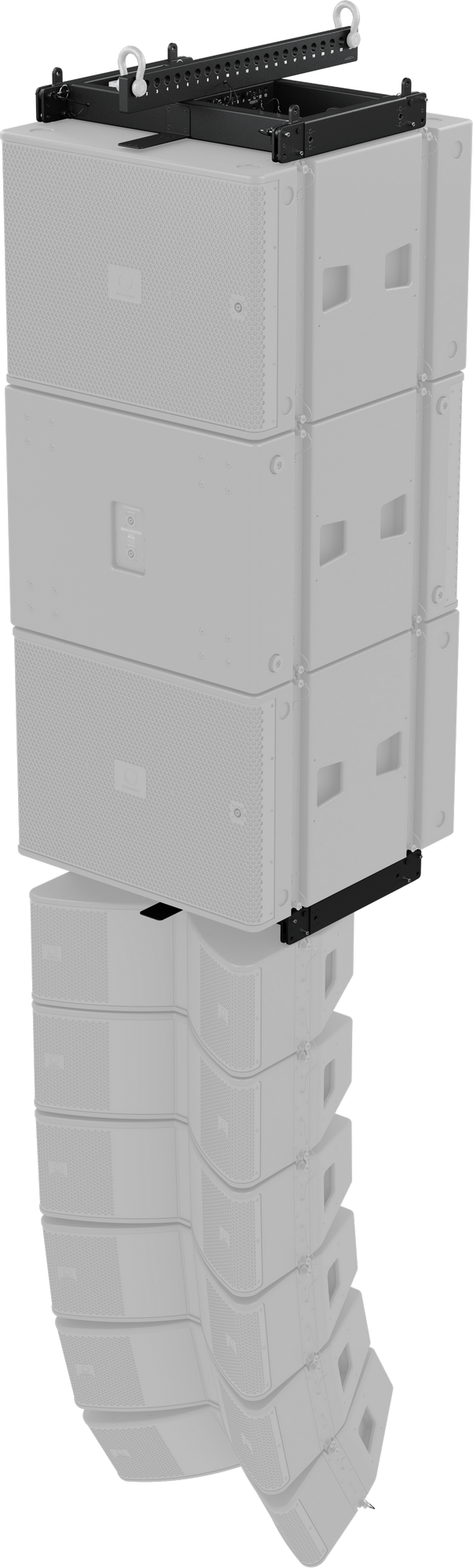

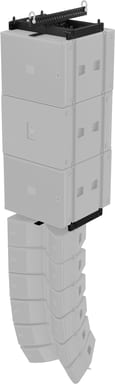

The MAN210-FG fly grid is designed to safely suspend unique or mixed arrays of MV210-HC line array elements and MS121 subwoofers. Engineered to meet BGV-C1 specifications, the fly grid can suspend multiple line array elements or subwoofers in unique arrays guarded by the WLL. The fly grid is secured to the uppermost speaker enclosure using the supplied drop links and rigging pins, with additional enclosures attaching in a similar manner below in succession. For suspension of mixed arrays, a second MAN210-FG is used to couple MV210-HC elements to the MS121 subwoofer above.

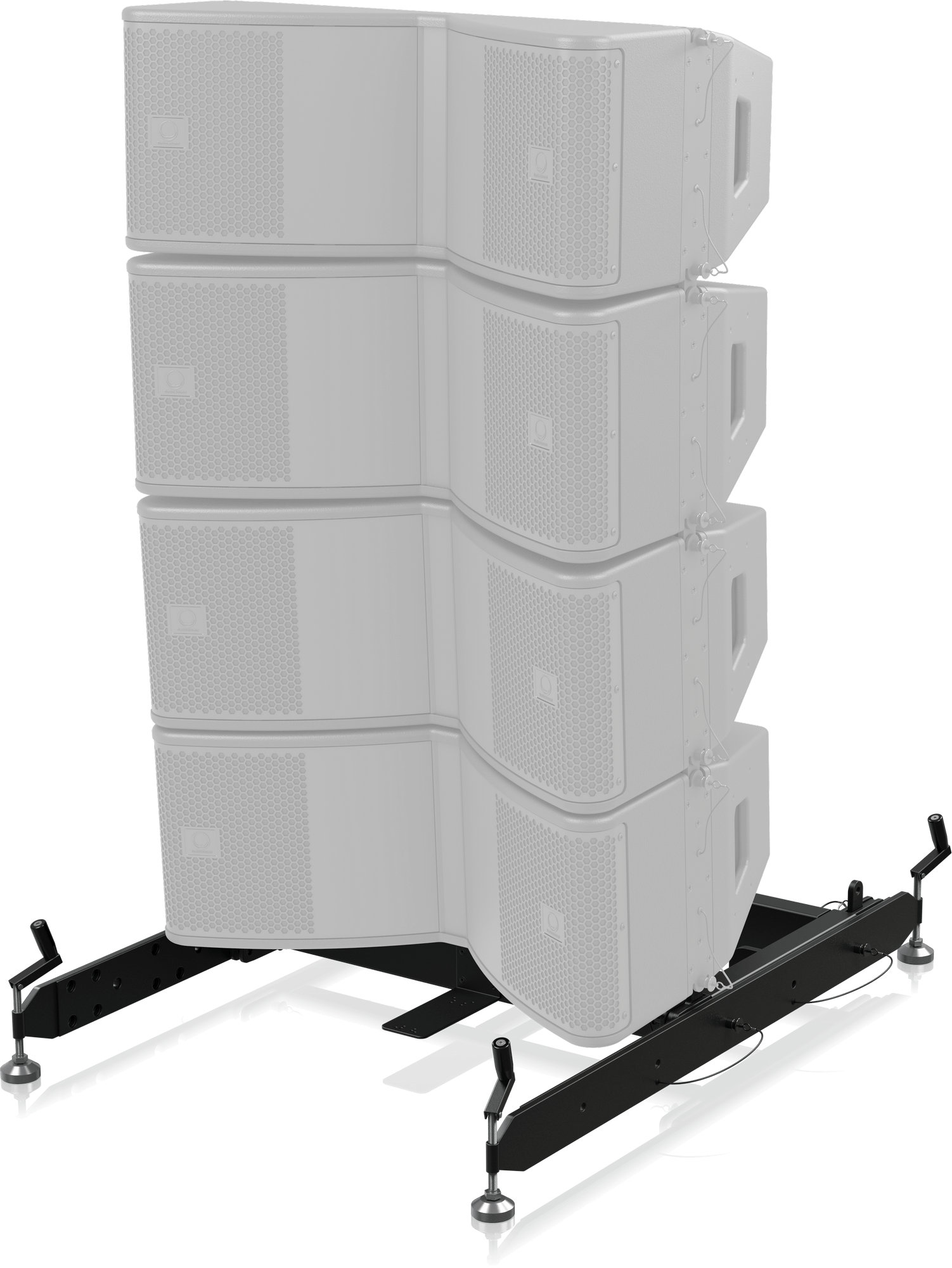

EASE GLL files are provided for EASE Focus 3 Acoustic Simulation Software, which is available for free download. This allows accurate calculation of both acoustic coverage and suspension pick point selection for tilting and aiming the array at the desired angle. Multiple pick points are provided which can be utilized either in single- or two-point suspension configurations. For ground stacked applications, the fly grid can be inverted for securely mounting MV210-HC enclosures above the MS121 subwoofer or utilized with just the MV210-HC and 3 position outriggers with adjust screw jack feet for optimum stability.
