Dual 15" Vented Bandpass Subwoofer for Touring and Installation Applications


Dual 15" Vented Bandpass Subwoofer for Touring and Installation Applications
Dual 15" Vented Bandpass Subwoofer for Touring and Installation Applications

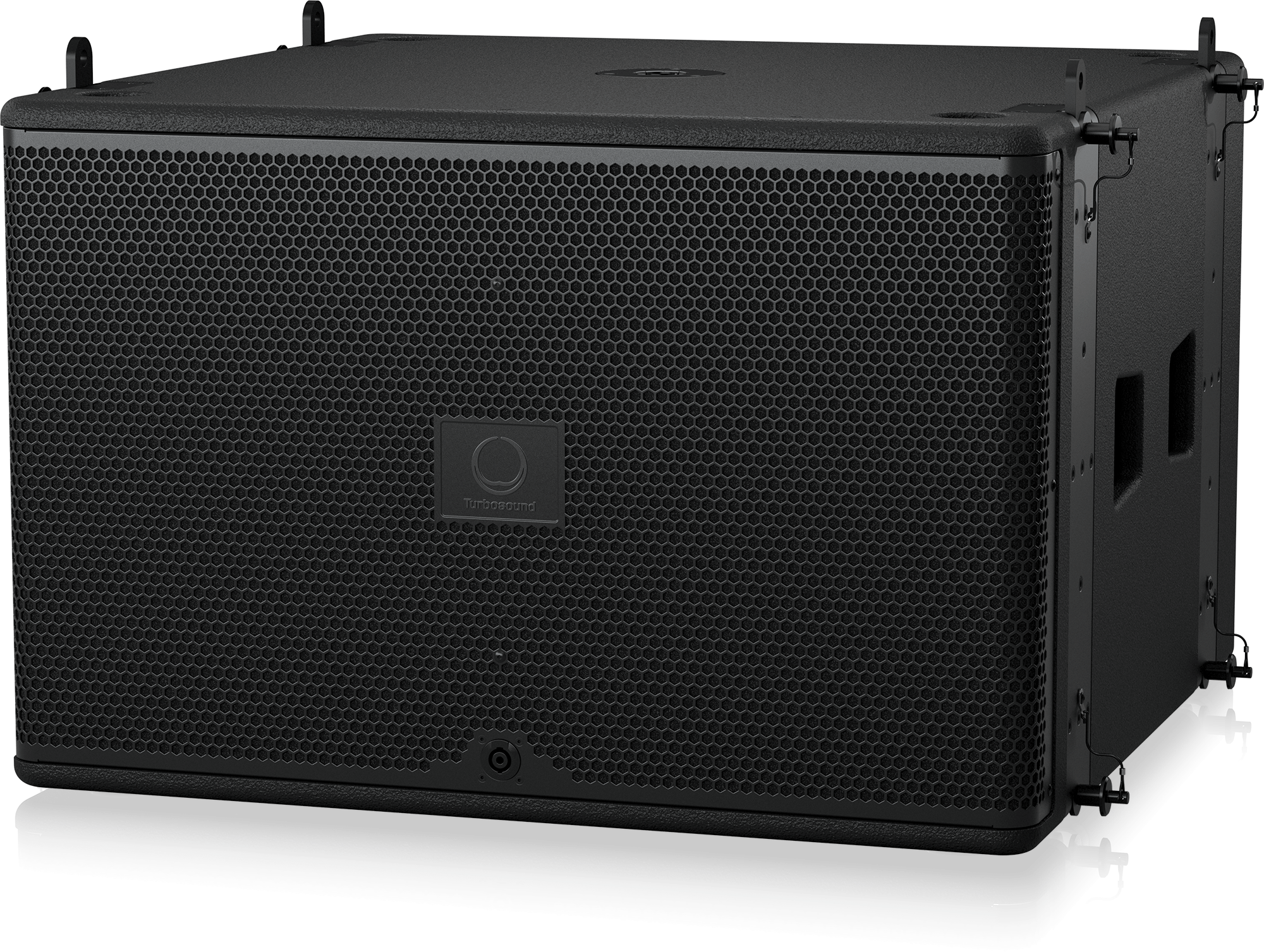

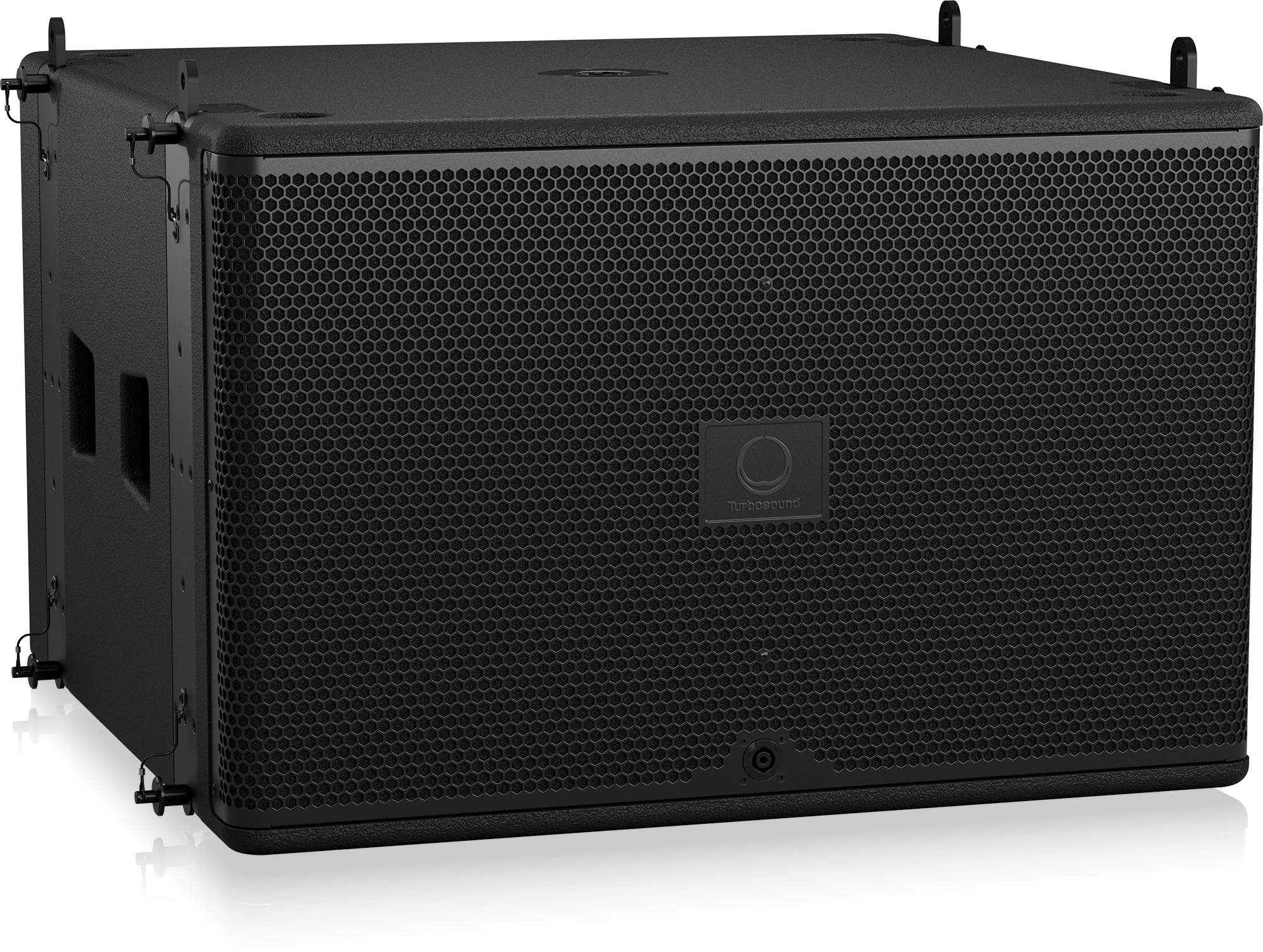

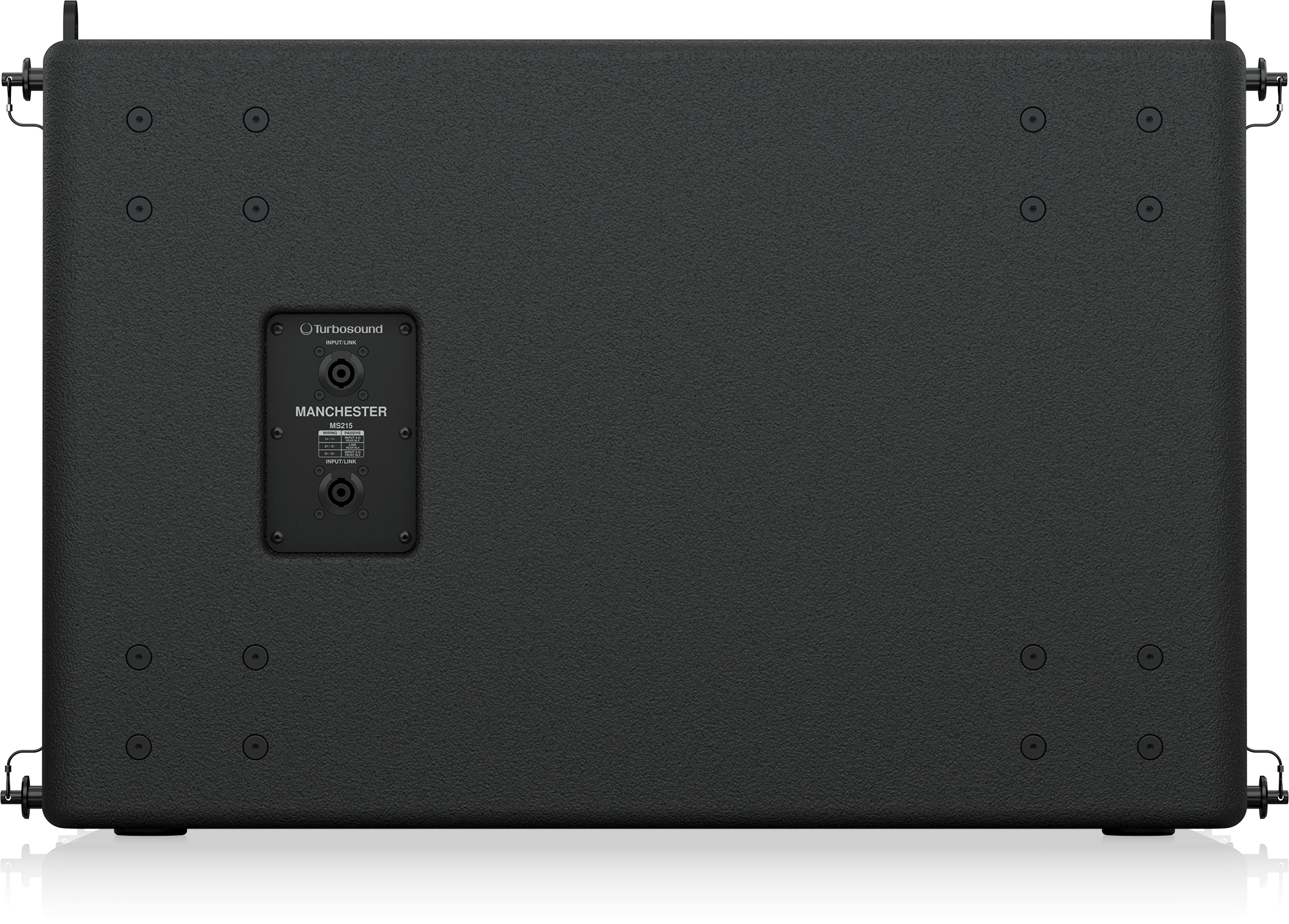

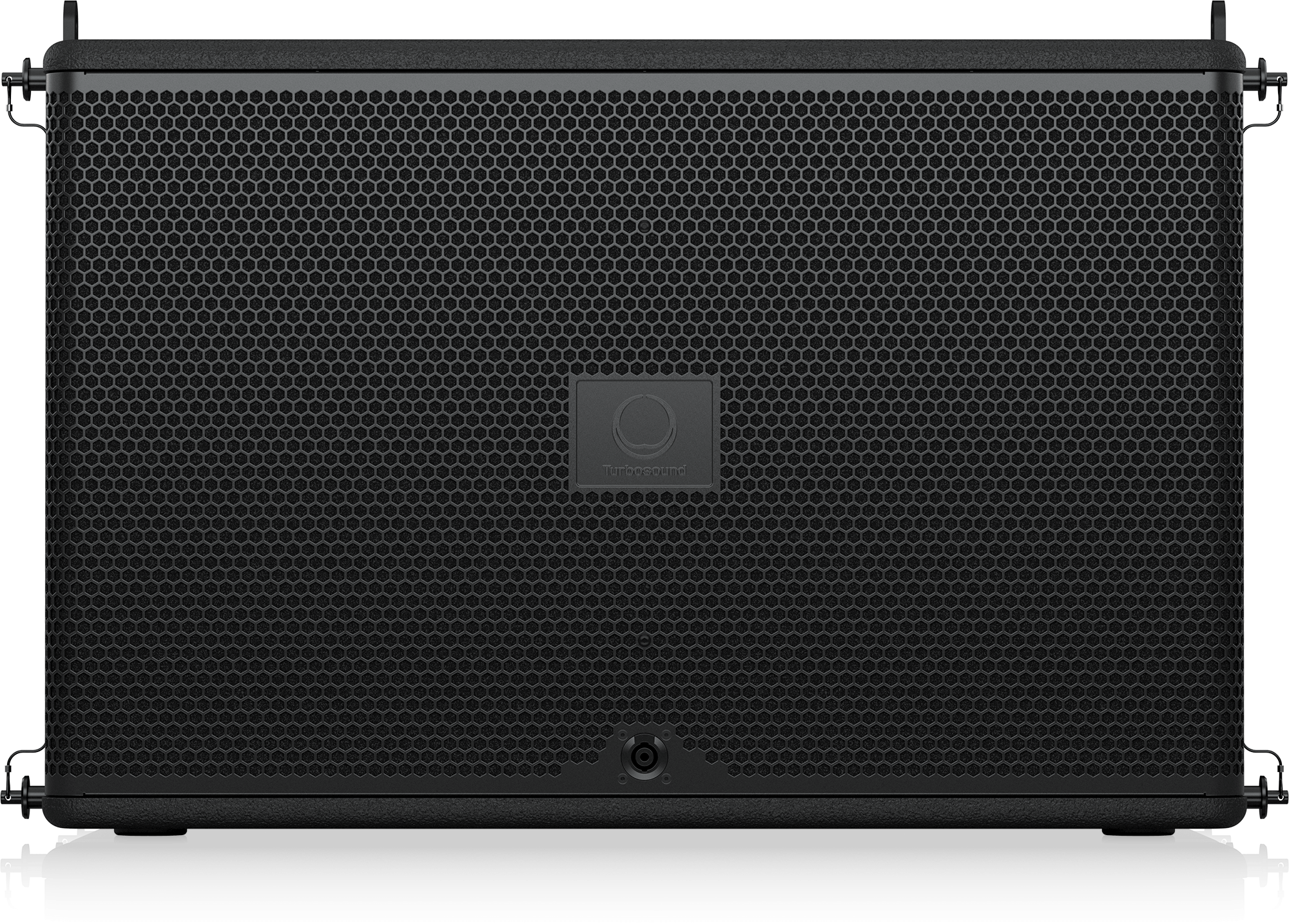

The MS215 is the flown subwoofer for Turbosound's Manchester Series compact-format line array, a passive dual-15-inch vented enclosure engineered to extend the system response down to 38 Hz with a tightly controlled radiation pattern and high mechanical output. The two long-excursion 15-inch transducers each feature a 3-inch high-temperature aluminium voice coil, a vented pole-piece for thermal management under sustained drive and a triple-roll surround for high excursion without compression. The internal enclosure is tuned through dual front-facing slot ports, and a precision-engineered bracing system isolates panel modes above 80 Hz. The cabinet presents a nominal 4-ohm load to the amplifier and supports a peak SPL of 138 dB at 1 m when driven from 2,000 W RMS per channel. Inputs are dual NL4 Speakon with linked feed for daisy-chained cabinets. Construction is 18 mm Baltic birch with a polyurethane finish and a perforated steel grille. The rigging hardware integrates with the Manchester Series main-cabinet hardware, allowing the MS215 to be flown at the top of a hybrid array or used as a ground-stacked sub beneath the main elements. Suitable for mid-format theatres, houses of worship, corporate AV, and as the LF foundation for the M10 and M12 mid-high cabinets. Designed and engineered in the U.K.
