TFS-550H
Dual 3 Way 6.5" Line Array Element Combined Polyhorn and Dendritic Waveguide for Touring Applications
1 / 1
View in fullscreen
TFS-550H
Dual 3 Way 6.5" Line Array Element Combined Polyhorn and Dendritic Waveguide for Touring Applications
About this product
Dual 3 Way 6.5" Line Array Element Combined Polyhorn and Dendritic Waveguide for Touring Applications
FLASHLINE Mini Compact 3-Way Line Array Element

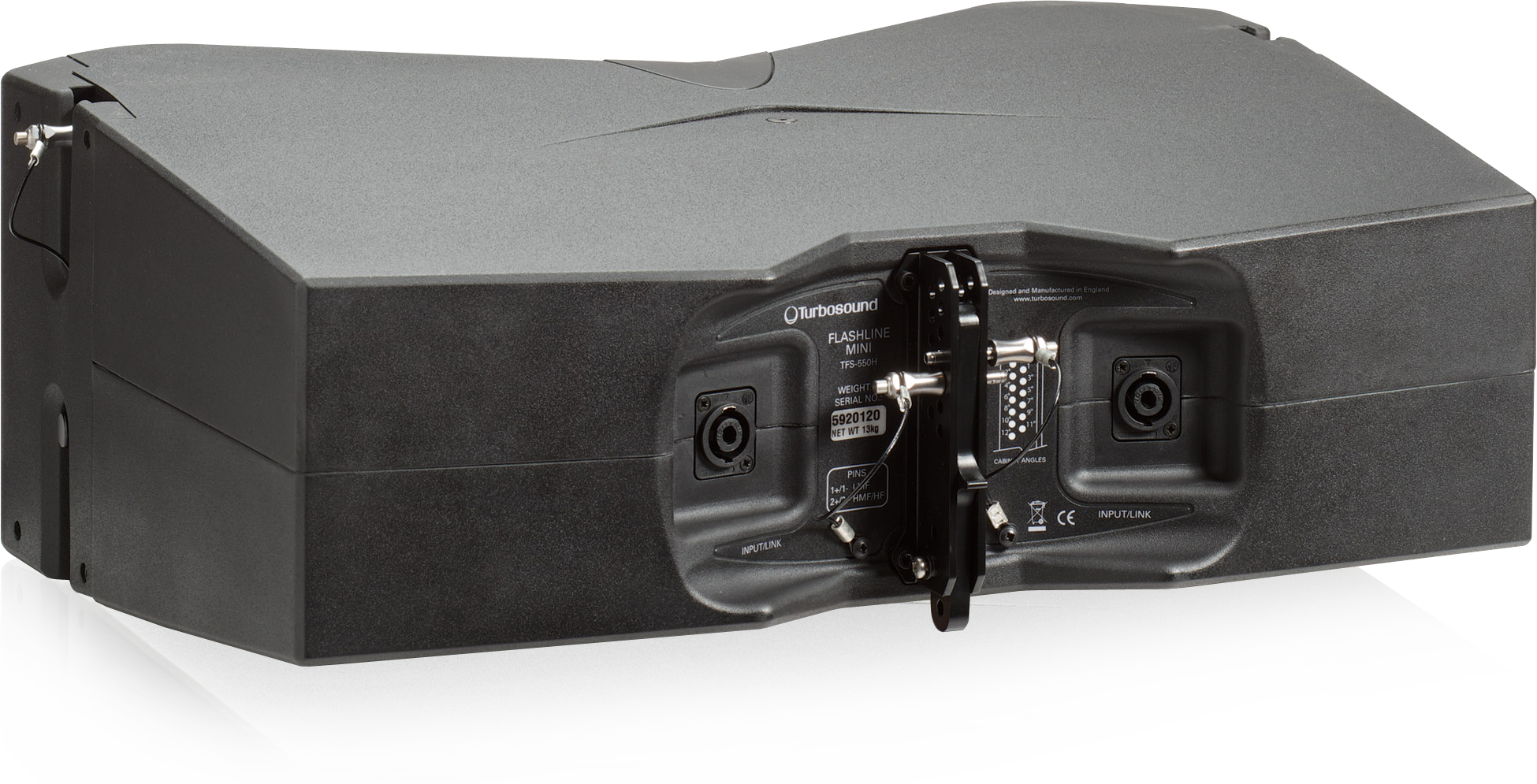

The Turbosound FLASHLINE TFS-550H is a 640 W (peak) three-way bi-amped compact line array element designed for medium-scale touring and fixed installation. Two high-excursion 6.5" neodymium low-frequency drivers with compression loading, a 4" neodymium midrange on a Polyhorn waveguide, and a 1" neodymium HF compression driver on a Dendritic horn combine to give clean, controlled coverage from 80 Hz to 20 kHz.
Performance SpecificationsFrequency response: 80 Hz to 20 kHz, ±3 dB. Dispersion: 110° horizontal by 8° vertical. Maximum SPL: 124 dB continuous, 130 dB peak. Cabinet dimensions: 194 x 550 x 395 mm. Weight: 13.4 kg. The compact form factor allows a 16-element column to fly from a single one-tonne motor with the matching FLASHLINE rigging.
Where It BelongsSuited to medium-scale touring, theatres, conference halls and large houses of worship where a discreet but high-performing line array is required. Pair with TFS-550L subwoofers for full-range deployment.
